Special-shaped sealing machine, spinning machine, edging machine, aluminum can die making machine

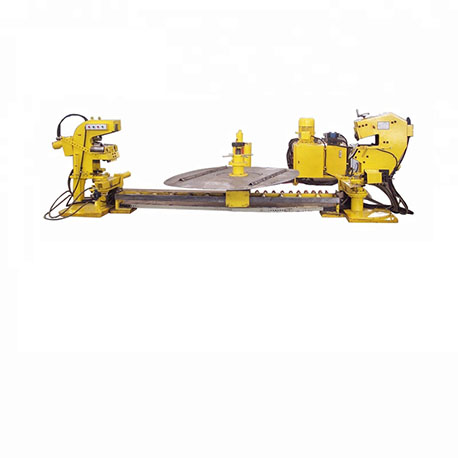

Special-shaped heading machine, spinning machine, edging machine, aluminum can die making machine, consists of main heading machine, pulley, hydraulic system, vacuum system, main cutting machine, etc. For aluminum alloy tank cars, due to the low elongation of the material, if the inner curvature of the can is small, cracks are likely to occur during processing. At present, a new type of special-shaped sealing head machine with an inner arc of 40 mm and a spinning height of 70 mm has been successfully developed.
Technical parameters of special-shaped head sealing machine spinning machine edging machine aluminum can die making machine
Maximum Diameter | 3000mm (can be adjusted according to the requirements of the customer) |
Minimum Diameter | 900mm |
Minimum Radius of the Arc | 250mm |
Cutting, Spinning Speed (line speed) | 0~4000m/min |
Processed Material of Work Piece | Carbon Steel, stainless steel, aluminum and aluminum alloy |
Processed Thickness of Work Piece | Carbon steel ≤8mm, stainless steel≤6mm, aluminum and aluminum alloy ≤12mm |
Hydraulic system pressure | 16MPa |
Fixing Mode of Work Piece | Vacuum chuck |
Power of Main Engine | 11KW |
Dalian Topress's special-shaped flat-bottom flanging machine is on hot promotion in winter. The event time is from November 11 to December 12, 2020. During this period, you can get a voucher worth 999 yuan for product consultation. For details, please consult customer service staff, mob/whatsapp: 008613394110095
