security Oil storage tank dish end flanging machine for sale
Security Oil storage tank dish end flanging machine Flanging principle

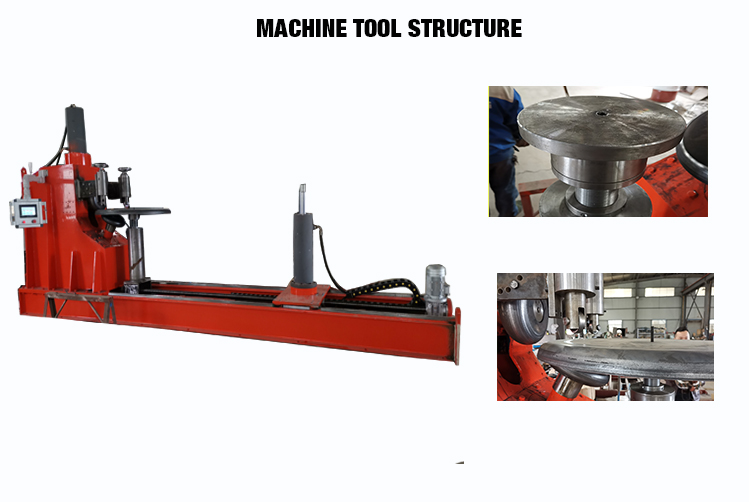

The structure of the machine is symmetric between the main drive wheel and the passive wheel. Then the workpiece welding or fixed on the turntable, the wheel up and down the central symmetry position through the oil cylinder lifting movement, balance and get the rotation rotation, through the output of the speed reducer and the roller mesh, 360 ° rotating implementation artifacts. When the roller pressure exceeds the yield limit of the material, then make the deformation of the rolled material, so as to achieve rolling diameter size.
Want to see this dish end flanging machine more information!
Dish end flanging machine modle choice
Modle | Max. thickness(mm) | Max.length(mm) | Advantages | Voltage(V) |
Jy0520 | 5 | 200 | the dished end have smoothly surface, less wheel marks, good roundness, Less thinning and ,high productivity | 380V/50HZ 220V/60HZ |
Jy0540 | 5 | 400 |
Jy0560 | 5 | 600 |
Jy0640 | 6 | 400 |
Jy0660 | 6 | 600 |
Jy0680 | 6 | 800 |
Jy07200 | 7 | 2000 |
Jy07400 | 7 | 4000 |
Jy08400 | 8 | 4000 |
Jy08600 | 8 | 6000 |
Want to know this dish end flanging machine more information!
Dalian Jiuying Machinery Equipment Co., Ltd. has a variety of different types of automatic head crimping machines. Customers can customize products according to different needs, pricing according to specific needs, and reasonable prices. Welcome to inquire,tel/whatsapp:0086-13322202758

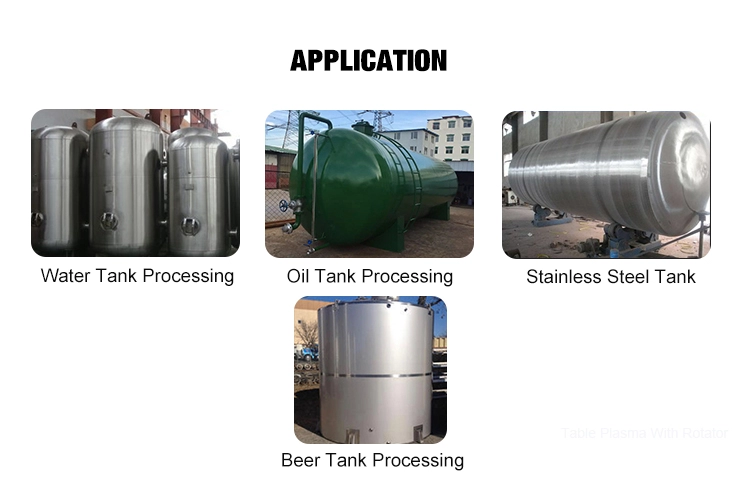

Mainly application for leisure food factory equipment, winery equipment, fruit and vegetable processing plant equipment, frozen food factory equipment, seasoning processing equipment, meat processing plant equipment head curling machine, flat bottom crimping machine, conical spiral machine, Edge turning machine, cylinder body crimping machine, beer tank curling machine, oil tank head crimping machine, etc.
Our company with good reputation and credit. We can provide you not only good quality dish end machine but also good after-sale service.
